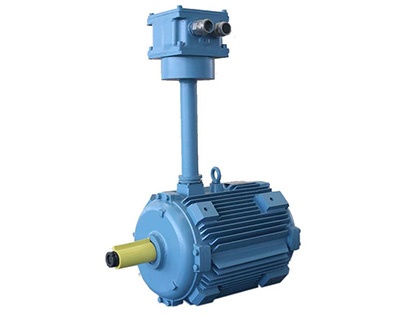

YBTX-H Series Explosion-proof Three Phase Marine Asynchronous Motor For Axial Flow Fan
YBTX-H Series Explosion-proof Three Phase Marine Asynchronous Motor For Axial Flow Fan
一、Product Overview
YBTX-H series motors are totally enclosed explosion-proof three phase asynchronous motors. The motors are designed and manufactured according to GB3836.1 “Electrical apparatus for explosive gas atomosphere-part1: General requirement” and GB3836.2 “Electrical apparatus for explosive gas atmosphere-part2:Flameproof enclosure “d ”.the motors have good performance ,low noise and easy maintenance. The motors can be used on the explosive mixture which compound with temperature class T1~T4 easy-ignition air or steam and air , where explosion-proof mark is ExdⅡCT4 Gb. The motors can be worked with CBZ-Ⅱtype of axial flow fan.
二、Operation Condition
Ambient temperature: -25~45℃;
Altitude: <1000m;
Relative humidity: ≤95%;
Inclination and swing: ±22.5℃(The longitudinal and lateral tilt might happened);
Oil-mist salt-mist fungus and sea water exist;
Shock and vibration might happened during shipping;
In air there might be exist explosive mixture which compound with temperature class T1~T4 easy-ignition air or steam and air.
二、Basic Parameter
Volt and Frequency: 380V/50Hz、440V/60Hz
Insulation Class: F
Degree of protection: IP55、IP56
Explosion-proof Mark: Exd IICT4 Gb
Duty: S1
Connection: 3kW or less than 3kW connected Y, the others connected △
Temperature rise of winding(resistance method)shouldn’t exceed 80K, allowed temperature of bearing(thermometer method)shouldn’t exceed 90℃.
三、Main Technical Data:
As table shown below, the main technical data of 2、4、6、8 poles of motors which output are 0.75kW~55kW.
Type |
Output kW |
current A |
Speed r/min |
Type |
Output kW |
current A |
Speed r/min |
||||
380V 50Hz |
440V 60Hz |
380V 50Hz |
440V 60Hz |
380V 50Hz |
440V 60Hz |
380V 50Hz |
440V 60Hz |
||||
YBTX-80M1-2-H |
0.75 |
1.8 |
1.6 |
2820 |
3460 |
YBTX-200L-4-H |
30 |
57.3 |
49.8 |
1476 |
1779 |
YBTX-80M2-2-H |
1.1 |
2.6 |
2.2 |
2820 |
3460 |
YBTX-225M-4-H |
45 |
84 |
73.4 |
1480 |
1783 |
YBTX-90S-2-H |
1.5 |
3.5 |
3.1 |
2840 |
3470 |
YBTX-250M-4-H |
55 |
103.8 |
88.7 |
1480 |
1780 |
YBTX-90L-2-H |
2.2 |
4.9 |
4.3 |
2840 |
3470 |
YBTX-80M1-6-H |
0.37 |
1.31 |
1.13 |
890 |
1110 |
YBTX-100L-2-H |
3 |
6.4 |
5.4 |
2880 |
3490 |
YBTX-80M2-6-H |
0.55 |
1.7 |
1.47 |
890 |
1110 |
YBTX-112M-2-H |
4 |
8.2 |
7.2 |
2890 |
3500 |
YBTX-90S-6-H |
0.75 |
2.2 |
2 |
910 |
1130 |
YBTX-132S1-2-H |
5.5 |
11 |
9.6 |
2900 |
3520 |
YBTX-90L-6-H |
1.1 |
3.2 |
2.9 |
910 |
1130 |
YBTX-132S2-2-H |
7.5 |
14.6 |
12.9 |
2900 |
3520 |
YBTX-100L-6-H |
1.5 |
4 |
3.5 |
940 |
1150 |
YBTX-160M1-2-H |
11 |
21.6 |
18.7 |
2930 |
3540 |
YBTX-112M-6-H |
2.2 |
5.8 |
5.2 |
940 |
1150 |
YBTX-160M2-2-H |
15 |
28.9 |
25.1 |
2930 |
3540 |
YBTX-132S-6-H |
3 |
7.2 |
6.4 |
960 |
1170 |
YBTX-160L-2-H |
18.5 |
35.7 |
30.3 |
2930 |
3540 |
YBTX-132M1-6-H |
4 |
9.5 |
8.2 |
960 |
1170 |
YBTX-180M-2-H |
22 |
42.2 |
36.9 |
2940 |
3550 |
YBTX-132M2-6-H |
5.5 |
12.5 |
10.7 |
960 |
1170 |
YBTX-200L1-2-H |
30 |
57.9 |
50.3 |
2955 |
3560 |
YBTX-160M-6-H |
7.5 |
17.1 |
14.8 |
970 |
1170 |
YBTX-200L2-2-H |
37 |
69.4 |
60.3 |
2960 |
3565 |
YBTX-160L-6-H |
11 |
25 |
21.7 |
970 |
1170 |
YBTX-225M-2-H |
45 |
85.9 |
76.3 |
2969 |
3572 |
YBTX-180L-6-H |
15 |
33 |
29.3 |
970 |
1180 |
YBTX-250M-2-H |
55 |
103.2 |
91.7 |
2970 |
3570 |
YBTX-200L1-6-H |
18.5 |
37.6 |
32.7 |
980 |
1183 |
YBTX-80M1-4-H |
0.55 |
1.5 |
1.4 |
1390 |
1710 |
YBTX-200L2-6-H |
22 |
44.7 |
38.9 |
980 |
1182 |
YBTX-80M2-4-H |
0.75 |
2.1 |
1.8 |
1390 |
1710 |
YBTX-225M-6-H |
30 |
61.1 |
53.1 |
985 |
1187 |
YBTX-90S-4-H |
1.1 |
2.7 |
2.4 |
1400 |
1710 |
YBTX-250M-6-H |
37 |
71 |
61.3 |
980 |
1180 |
YBTX-90L-4-H |
1.5 |
3.6 |
3.2 |
1400 |
1710 |
YBTX-132S-8-H |
2.2 |
5.8 |
5.2 |
710 |
860 |
YBTX-100L1-4-H |
2.2 |
5 |
4.5 |
1420 |
1730 |
YBTX-132M-8-H |
3 |
7.6 |
6.8 |
710 |
860 |
YBTX-100L2-4-H |
3 |
6.8 |
5.9 |
1420 |
1730 |
YBTX-160M1-8-H |
4 |
10.5 |
9.1 |
720 |
870 |
YBTX-112M-4-H |
4 |
8.9 |
7.7 |
1440 |
1750 |
YBTX-160M2-8-H |
5.5 |
13.4 |
11.5 |
720 |
870 |
YBTX-132S-4-H |
5.5 |
11.7 |
10 |
1440 |
1750 |
YBTX-160L-8-H |
7.5 |
17.7 |
15.5 |
720 |
870 |
YBTX-132M-4-H |
7.5 |
15.4 |
13.2 |
1440 |
1750 |
YBTX-180L-8-H |
11 |
25.6 |
22.2 |
730 |
880 |
YBTX-160M-4-H |
11 |
22.6 |
19.5 |
1460 |
1760 |
YBTX-200L-8-H |
15 |
33.3 |
29.2 |
729 |
882 |
YBTX-160L-4-H |
15 |
30.5 |
26.3 |
1460 |
1760 |
YBTX-225M-8-H |
22 |
47.4 |
41.7 |
734 |
886 |
YBTX-180M-4-H |
18.5 |
35.9 |
30.8 |
1470 |
1770 |
YBTX-250M-8-H |
30 |
64.7 |
57.1 |
730 |
890 |
YBTX-180L-4-H |
22 |
42.2 |
36.9 |
1470 |
1770 |
|
|
|
|
|
|

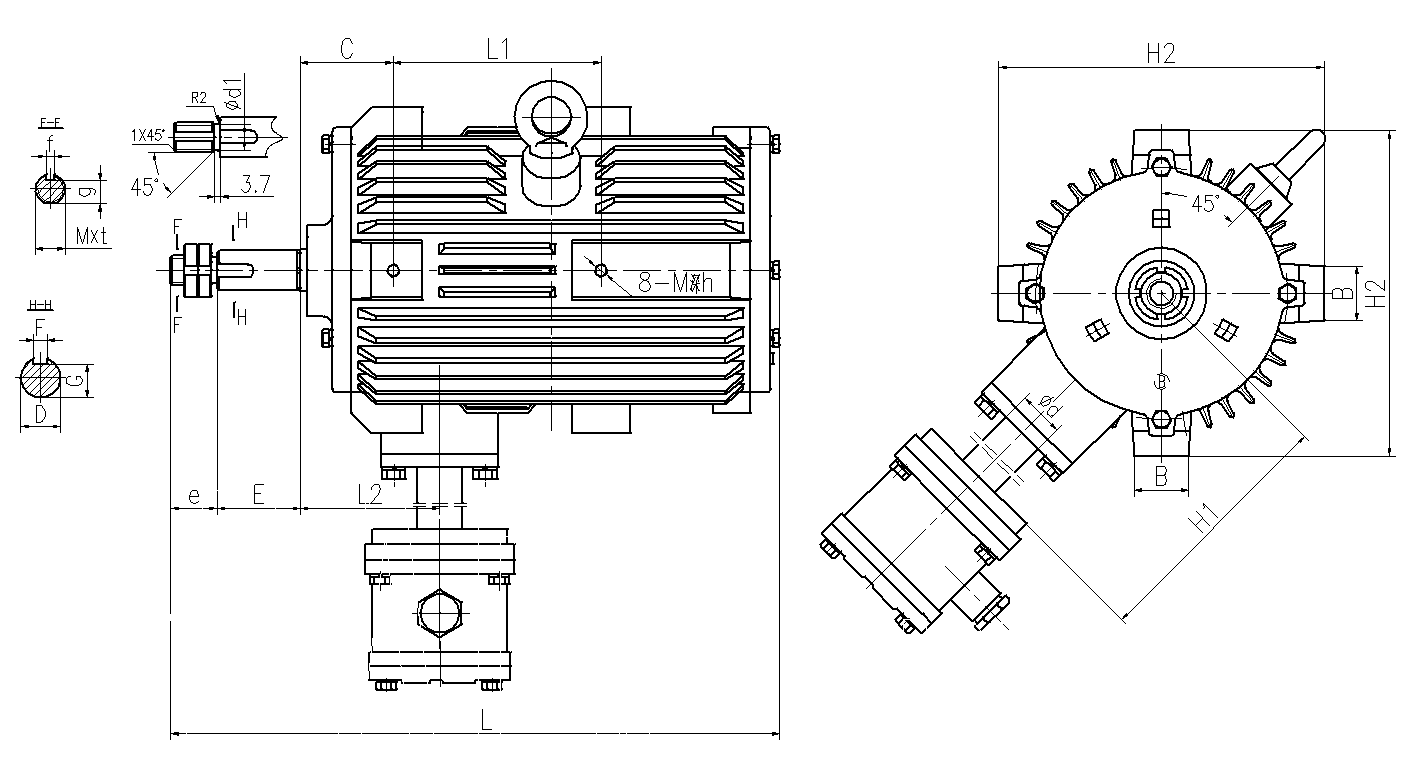

Frame Size |
Mounting and Overall Dimension |
|||||||||||||||||
B |
C |
D |
E |
F |
G |
H1 |
H2 |
e |
L |
L1 |
L2 |
d |
d1 |
g |
f |
M×t |
M深h |
|
80M1 |
36 |
58±2 |
19 |
40 |
6 |
15.5 |
176 |
175 |
28 |
330 |
100 |
90 |
60 |
13.8 |
12 |
5 |
M16×1.5 |
M8 深 14 |
80M2 |
201 |
|||||||||||||||||
90S |
62±2 |
24 |
50 |
8 |
20 |
280 |
190 |
340 |
15.8 |
14 |
M18×1.5 |
|||||||
90L |
226 |
375 |
125 |
|||||||||||||||
100L1 |
40 |
68±2 |
28 |
60 |
24 |
280/330/380 |
220 |
410 |
140 |
93 |
17.8 |
16 |
M20×1.5 |
M10 深 17 |
||||
100L2 |
280/380 |
|||||||||||||||||
112M |
76±2 |
280/380/410 |
245 |
430 |
102 |
|||||||||||||
132S |
89±2 |
38 |
80 |
10 |
33 |
280/435 |
285 |
32 |
450 |
120 |
21.8 |
20 |
M24×1.5 |
|||||
132M |
410/435/485 |
495 |
178 |
|||||||||||||||
160M |
46 |
114±3 |
42 |
110 |
12 |
37 |
435/485/535 |
345 |
596 |
210 |
162 |
24.8 |
23 |
M27×1.5 |
||||
160L |
485/535/585 |
646 |
254 |
|||||||||||||||
180M |
54 |
126±3 |
48 |
14 |
42.5 |
485/585 |
380 |
702 |
241 |
174 |
27.8 |
26 |
M30×1.5 |
M14 深 22 |
||||
180L |
535/585/642 |
740 |
279 |
|||||||||||||||
200L1 |
60 |
133±3 |
55 |
16 |
49 |
585/642 |
430 |
305 |
186 |
30.8 |
29 |
6 |
M33×1.5 |
M16 深 26 |
||||
200L2 |
742 |
|||||||||||||||||
225M |
70 |
149±3 |
60 |
140 |
18 |
53 |
642/735/742 |
480 |
870 |
311 |
196 |
76 |
33.8 |
32 |
M36×1.5 |
M18 深 30 |
||
250M |
168±4 |
65 |
58 |
740 |
526 |
40 |
1000 |
340 |
38 |
38 |
8 |
M42×1.5 |
M16 深 24 |
REMARK:The technical data is only used for reference,please contact us and get detailed specifications and offer.
