CLZ1-J Marine high pressure axial flow fan
CLZ 1-J marine high pressure axial flow fan
1.General
CLZ1-J Marine vertical axial-flow fan for marine use, are designed primarily for ventilation of the machinery room and each compartment. The construction can be delivered for air supply or air exhaust, the ocean air containing salt fog or acid vapor vaporized from storage battery area. Temperature of the air transferred can not exceed 50℃.
2.Features
CLZ1-J Marine vertical axial-flow fan have low-noise,tight weight,stable performance,etc
In the course of designing&manufacturing,we had thought fully of the marine special conditions,the impellers are strictly made by dynamic balance sdjustment & over speed test. Therefore,the fans also have the features of good-anticorrosion,anti-swing,vibration resistance,shock resistance,shock resistance,stable running and safety reliable.
CLZ1-J Marine vertical axial-flow fan can be used with 380V/220V,50HZ or 440V/220V,60HZ.
3.Construction
CLZ1-J Marine vertical axial-flow fan consists of the impeller, casing motor, guide cowl, conical diffuser, etc.
CLZ1-J Marine vertical axial-flow fan Casing is made of steel plate of having ample thickness, being composed of an inner cylinder, a shell and a down-stream guide vane. The shell is made in the shape of cylindrical ducts at both ends. The inner cylinder and the shell is connected with the downstream guide vane used to guide the air flow.
CLZ1-J Marine vertical axial-flow fan Motor—Built-in Motor type (to be mounted on the inner cylinder) which is manufactured by the motor factory is specially designed to suit CLZ fan construction, it is totally enclosed, natural cooled, and it is capable of standing salt spray, vibration or shocking. There are two types: ZZT-H Series DC marine motor (rated voltage 220V) and Y-H series AC marine motor (rated voltage 220/380V).
CLZ1-J Marine vertical axial-flow fan Propeller is made of carrion resistant aluminum alloy (cast), being carefully balanced and mounted directly on the motor shaft extension.
CLZ1-J Marine vertical axial-flow fan The guide cowl installed on the inlet and the conical diffuser installed on the outlet are used to cut the vortex of the air flow, to ensure higher efficiency of the fan. Material: in forced plastics.
CLZ1-J Marine vertical axial-flow fanFinish—the fan is both printed and painted with marine paint.

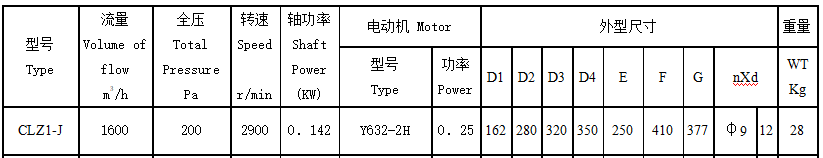

4.Technical data
5.Outline Dimensions
6.Operation Conditions
REMARK:The technical data is only used for reference,please contact us and get detailed specifications and offer.
We could produce the marine axial fan according to customer's detailed requirement,welcome to contact us!
1.General
CLZ1-J Marine vertical axial-flow fan for marine use, are designed primarily for ventilation of the machinery room and each compartment. The construction can be delivered for air supply or air exhaust, the ocean air containing salt fog or acid vapor vaporized from storage battery area. Temperature of the air transferred can not exceed 50℃.
2.Features
CLZ1-J Marine vertical axial-flow fan have low-noise,tight weight,stable performance,etc
In the course of designing&manufacturing,we had thought fully of the marine special conditions,the impellers are strictly made by dynamic balance sdjustment & over speed test. Therefore,the fans also have the features of good-anticorrosion,anti-swing,vibration resistance,shock resistance,shock resistance,stable running and safety reliable.
CLZ1-J Marine vertical axial-flow fan can be used with 380V/220V,50HZ or 440V/220V,60HZ.
3.Construction
CLZ1-J Marine vertical axial-flow fan consists of the impeller, casing motor, guide cowl, conical diffuser, etc.
CLZ1-J Marine vertical axial-flow fan Casing is made of steel plate of having ample thickness, being composed of an inner cylinder, a shell and a down-stream guide vane. The shell is made in the shape of cylindrical ducts at both ends. The inner cylinder and the shell is connected with the downstream guide vane used to guide the air flow.
CLZ1-J Marine vertical axial-flow fan Motor—Built-in Motor type (to be mounted on the inner cylinder) which is manufactured by the motor factory is specially designed to suit CLZ fan construction, it is totally enclosed, natural cooled, and it is capable of standing salt spray, vibration or shocking. There are two types: ZZT-H Series DC marine motor (rated voltage 220V) and Y-H series AC marine motor (rated voltage 220/380V).
CLZ1-J Marine vertical axial-flow fan Propeller is made of carrion resistant aluminum alloy (cast), being carefully balanced and mounted directly on the motor shaft extension.
CLZ1-J Marine vertical axial-flow fan The guide cowl installed on the inlet and the conical diffuser installed on the outlet are used to cut the vortex of the air flow, to ensure higher efficiency of the fan. Material: in forced plastics.
CLZ1-J Marine vertical axial-flow fanFinish—the fan is both printed and painted with marine paint.
4.Technical data
5.Outline Dimensions
6.Operation Conditions
Medium temperature: -25℃ ~ +50℃
Max relative humidity: 95%
Periodical swing: ±22.5°
Continued transversal incline: ±15°
Continued longitudinal incline: ±10°
Vibration: existent
Impact: existent
REMARK:The technical data is only used for reference,please contact us and get detailed specifications and offer.
We could produce the marine axial fan according to customer's detailed requirement,welcome to contact us!
